Jianjie organic binder for iron ore pellets

Bentonite Extender

Jianjie Bentonite Extender is formulated from multiple water-soluble polymer compounds. With excellent hydrophilicity, complexation capability, and binding performance, it effectively enhances the bonding strength and high-temperature stability of bentonite.

By improving the adhesive properties of bentonite, the extender enables reduced bentonite dosage while maintaining or even improving overall performance. It is suitable for both metallurgical pellet-use bentonite and foundry bentonite applications.

Get Quote Now
Request a Sample

Range of Applications

The Bentonite Extender can be widely applied in:

  • Metallurgical pellet-use bentonite
  • Foundry bentonite

It is designed to work compatibly with various bentonite grades used in iron ore pelletizing and foundry sand systems.

fired iron ore pellets

Advantages of Jianjie Bentonite Extender

Boost Pellet Performance with Advanced Binding
u003csvg xmlns=u0022http://www.w3.org/2000/svgu0022 viewBox=u00220 0 448 512u0022u003eu003cpath d=u0022M342.6 86.6c12.5-12.5 12.5-32.8 0-45.3s-32.8-12.5-45.3 0L160 178.7l-57.4-57.4c-12.5-12.5-32.8-12.5-45.3 0s-12.5 32.8 0 45.3l80 80c12.5 12.5 32.8 12.5 45.3 0l160-160zm96 128c12.5-12.5 12.5-32.8 0-45.3s-32.8-12.5-45.3 0L160 402.7 54.6 297.4c-12.5-12.5-32.8-12.5-45.3 0s-12.5 32.8 0 45.3l128 128c12.5 12.5 32.8 12.5 45.3 0l256-256zu0022/u003eu003c/svgu003e
  • Formulated with cutting-edge polymers, our Bentonite Extender enhances the binding power and high-temperature stability of bentonite. Its hydrophilic, complexing, and binding properties ensure stronger, more uniform pellets.
Optimize Pellet Composition
u003csvg xmlns=u0022http://www.w3.org/2000/svgu0022 viewBox=u00220 0 448 512u0022u003eu003cpath d=u0022M438.6 278.6c12.5-12.5 12.5-32.8 0-45.3l-160-160c-12.5-12.5-32.8-12.5-45.3 0s-12.5 32.8 0 45.3L338.8 224 32 224c-17.7 0-32 14.3-32 32s14.3 32 32 32l306.7 0L233.4 393.4c-12.5 12.5-12.5 32.8 0 45.3s32.8 12.5 45.3 0l160-160zu0022/u003eu003c/svgu003e
  • Improves bentonite viscosity while allowing for controlled reduction of SiO₂ and Al₂O₃ content—producing cleaner, higher-quality pellets.
Maintain Fe Content
u003csvg xmlns=u0022http://www.w3.org/2000/svgu0022 viewBox=u00220 0 448 512u0022u003eu003cpath d=u0022M438.6 278.6c12.5-12.5 12.5-32.8 0-45.3l-160-160c-12.5-12.5-32.8-12.5-45.3 0s-12.5 32.8 0 45.3L338.8 224 32 224c-17.7 0-32 14.3-32 32s14.3 32 32 32l306.7 0L233.4 393.4c-12.5 12.5-12.5 32.8 0 45.3s32.8 12.5 45.3 0l160-160zu0022/u003eu003c/svgu003e
  • Compared to traditional binders such as bentonite, our extender helps maintain a higher TFe, preserving the value of your raw materials and boosting overall process efficiency.
Stronger and More Resilient Pellets
u003csvg xmlns=u0022http://www.w3.org/2000/svgu0022 viewBox=u00220 0 448 512u0022u003eu003cpath d=u0022M438.6 278.6c12.5-12.5 12.5-32.8 0-45.3l-160-160c-12.5-12.5-32.8-12.5-45.3 0s-12.5 32.8 0 45.3L338.8 224 32 224c-17.7 0-32 14.3-32 32s14.3 32 32 32l306.7 0L233.4 393.4c-12.5 12.5-12.5 32.8 0 45.3s32.8 12.5 45.3 0l160-160zu0022/u003eu003c/svgu003e
  • Enhances elastic strength, reducing breakage during handling, transport, and furnace charging.
High-Temperature Stability
u003csvg xmlns=u0022http://www.w3.org/2000/svgu0022 viewBox=u00220 0 448 512u0022u003eu003cpath d=u0022M438.6 278.6c12.5-12.5 12.5-32.8 0-45.3l-160-160c-12.5-12.5-32.8-12.5-45.3 0s-12.5 32.8 0 45.3L338.8 224 32 224c-17.7 0-32 14.3-32 32s14.3 32 32 32l306.7 0L233.4 393.4c-12.5 12.5-12.5 32.8 0 45.3s32.8 12.5 45.3 0l160-160zu0022/u003eu003c/svgu003e
  • Designed to withstand furnace conditions, the extender ensures your pellets retain shape and integrity even under extreme heat, supporting smoother operations and better metallurgical results.

Specification and Instruction

Executive Standard: Q/HJSY 006-2022

PropertyValue
AppearanceFluid powder
Fineness: (250μm) (%)≥90.0
Moisture (%)≤12.0
Viscosity(mPa·s)≥100
pH7.0-9.0
Bulk Density (g/L)1000±300
Packaging

Available in 25kg woven bags or 1000kg jumbo bags, designed for safe handling and convenient storage.

Storage

For best results, store Jianjie binders in a cool, dry, and well-ventilated area. Keep bags elevated on a damp-proof pallet or cushion, and avoid any exposure to direct sunlight or rain.

Shipping

Flexible transportation options are available, including air, road, rail, and sea, to meet your specific needs.

Contact Us for Quotation & Technical Support

Contact Jianjie Group for more product details and real customer application cases.
We provide free samples for testing, or you may send your raw materials to our laboratory for professional evaluation and performance optimization. Our technical team will support you with data-driven recommendations tailored to your production process.

Your name

Email

Contact

Subject

Message

Your form submitted successfully!

Error

Sorry! your form was not submitted properly, Please check the errors above.

Learn More about Iron Ore Pelletizing

View All Resources
Image showing a petri dish filled with gray bentonite extender powder on a wooden surface, with the text "What is Bentonite Extender?" and the Jianjie Group logo.

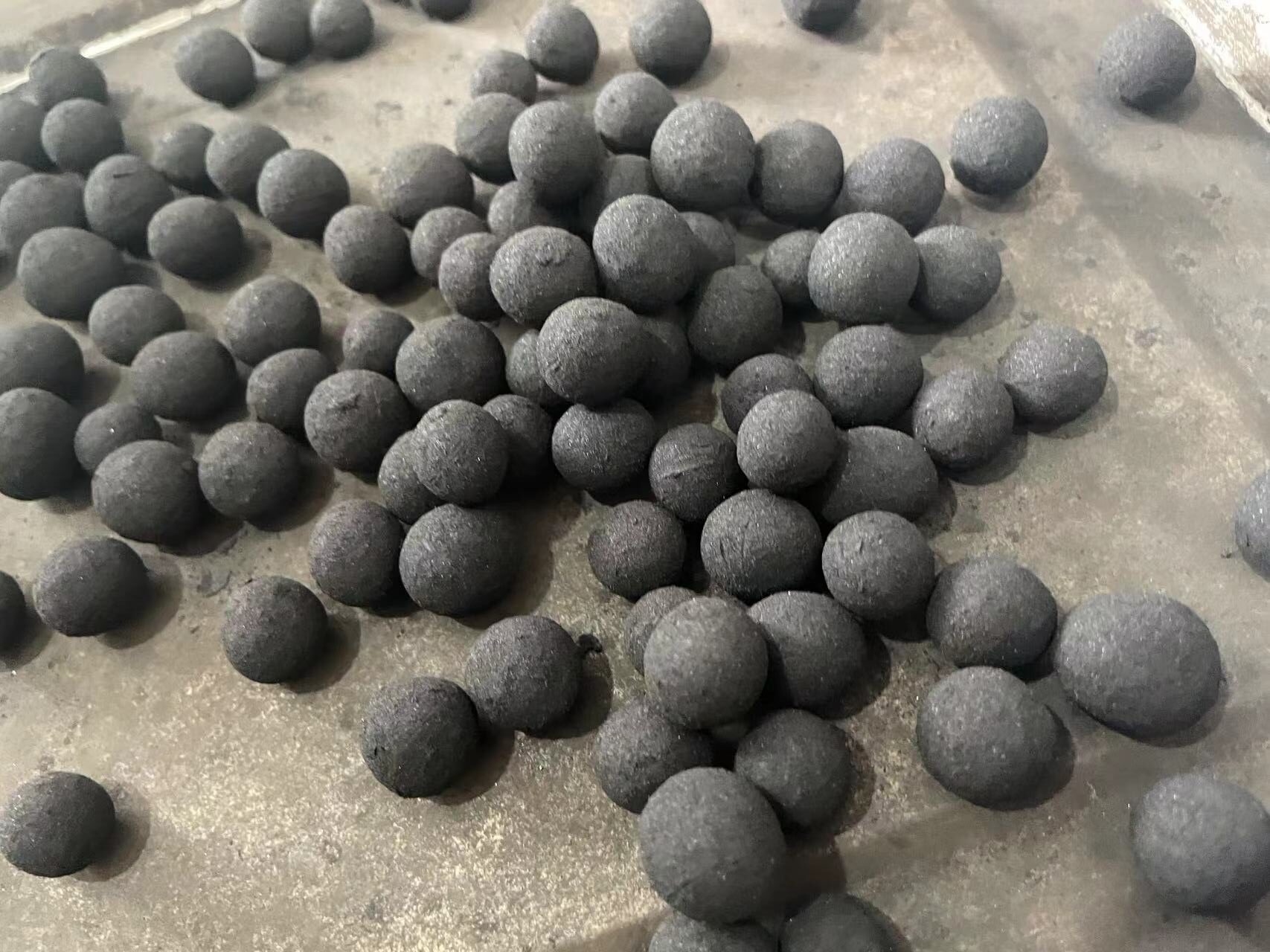

Iron Ore Pellets
